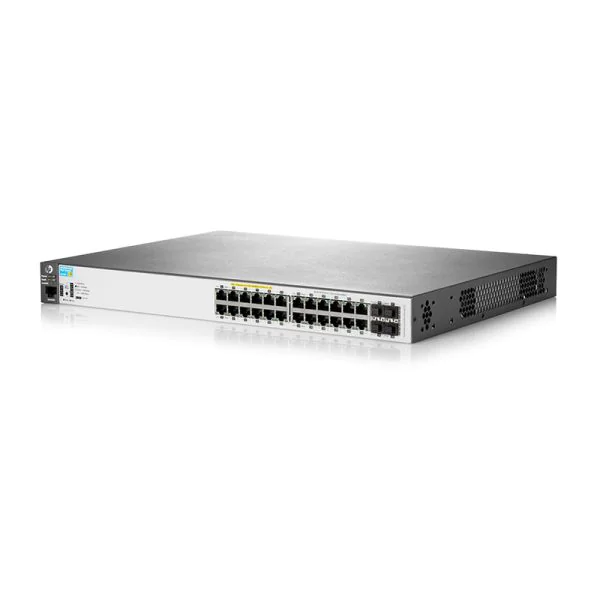

HPE J9773A - Aruba 2530 24G PoE+ Switch

Details

J9773A Overview


The Aruba J9773A is an enterprise-grade switch designed to meet the demands of modern business networks. As a part of the 2530 series, the Aruba 2530 24g poe+ switch j9773a offers 24 Gigabit Ethernet ports and PoE+ support, providing robust and reliable connectivity solutions. Ideal for SMBs and larger enterprises alike, the aruba 2530 24g poe+ switch j9773a integrates seamlessly into existing network environments, delivering secure and efficient data transfer. This switch supports advanced management and security features ensuring optimal network performance and protection. The aruba 2530-24g j9773a is perfect for businesses needing high-performance networking solutions with extensive PoE capabilities to power various devices.

Product Highlights

24
Gigabit Ports
195W
PoE Budget
4

Product Features Comparison

BrandArubaArubaCisco
Ports244826
PoE Budget195W370W180W
SFP Uplinks442

Optional Add-ons

Model NumberDescription
J9150DAruba 10G SFP+ LC SR 300m MMF Transceiver
J9151EAruba 10G SFP+ LC LR 10km SMF Transceiver
R2X05AAruba 1G SFP LC SX 550m MMF Transceiver

J9773A Specification

Model
J9773A
Brand
Aruba
Type
Aruba 2530-24G-PoE+ Switch
Ports
  • 24 RJ-45 autosensing 10/100/1000 PoE+ ports

  • 4 fixed Gigabit Ethernet SFP ports

  • 1 dual-personality (RJ-45 or USB micro-B) serial console port.

Memory and processor
Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; Packet buffer size: 1.5 MB dynamically allocated.
Mounting
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting.
Management
IMC - Intelligent Management Center; CLI; Web browser; Configuration menu; Out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.
Performance
1000 Mb latency: < 2.3 μs (64-byte packets); 100 Mb latency: < 7.4 μs (64-byte packets); Throughput: Up to 41.6 million pps; Switching capacity: 56 Gbps; MAC address table size: 16000 entries.
Dimensions (W x D x H)
44.3 x 33.02 x 4.45 cm (1U height)
Electrical specifications
Maximum heat dissipation: 135 BTU/hr (switch only); 843 BTU/hr (combined switch + max. PoE devices); Voltage: 100 - 127 / 200 - 240 V ac; Current: 3.2/1.6 A; Idle power: 25.2 W; Maximum power rating: 247 W; PoE power: 195 W; Frequency: 50/60 Hz.
Operating temperature
0°C to 45°C (32°F to 113°F)
Operating relative humidity
15% to 95% @ 40°C (104°F), noncondensing
Non-operating/storage temperature
-40°C to 70°C (-40°F to 158°F)
Non-operating/storage relative humidity
15% to 90% @ 65°C (149°F), noncondensing
Altitude
Up to 3 km (10,000 ft)
Acoustic
Power: 39.6 dB, Pressure: 43.9 dB
Safety certifications
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
