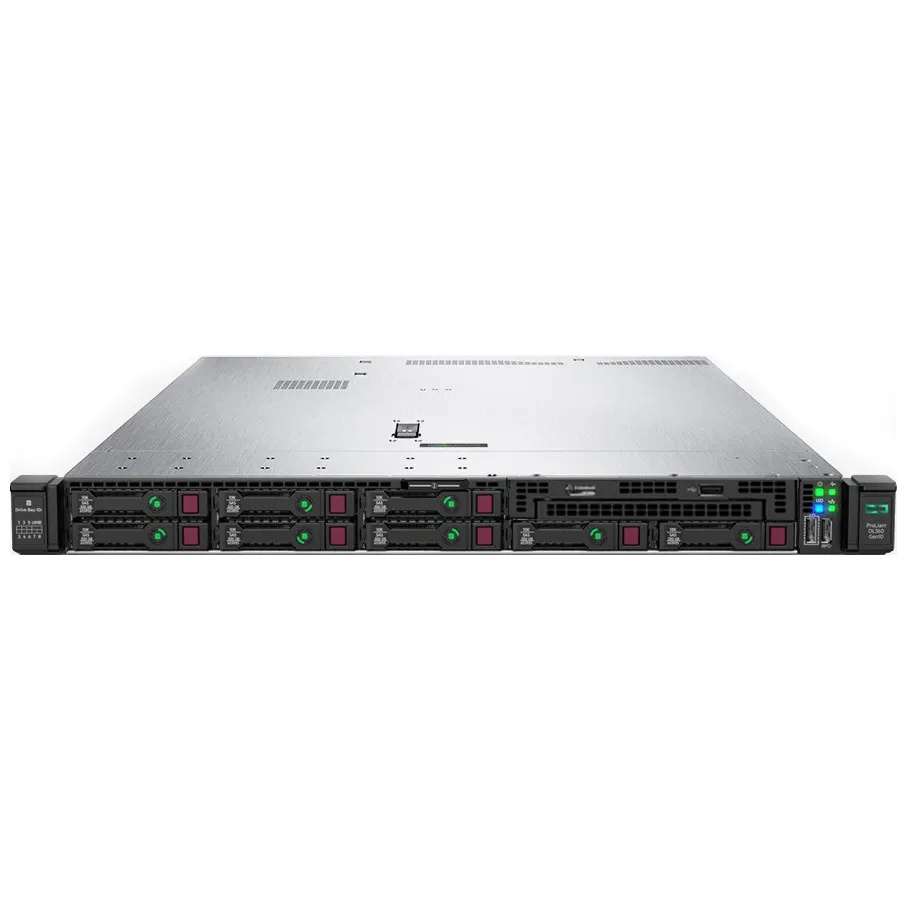

HPE ProLiant DL360 Gen10 Server Overview:
The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up
to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added
performance that HPE DC Persistent Memory (available 2H19), HPE NVDIMMs and 10 NVMe bring,
the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads
in space constrained environments and maintain it with ease by automating the most essential
server lifecycle management tasks with HPE OneView and HPE iLO 5.

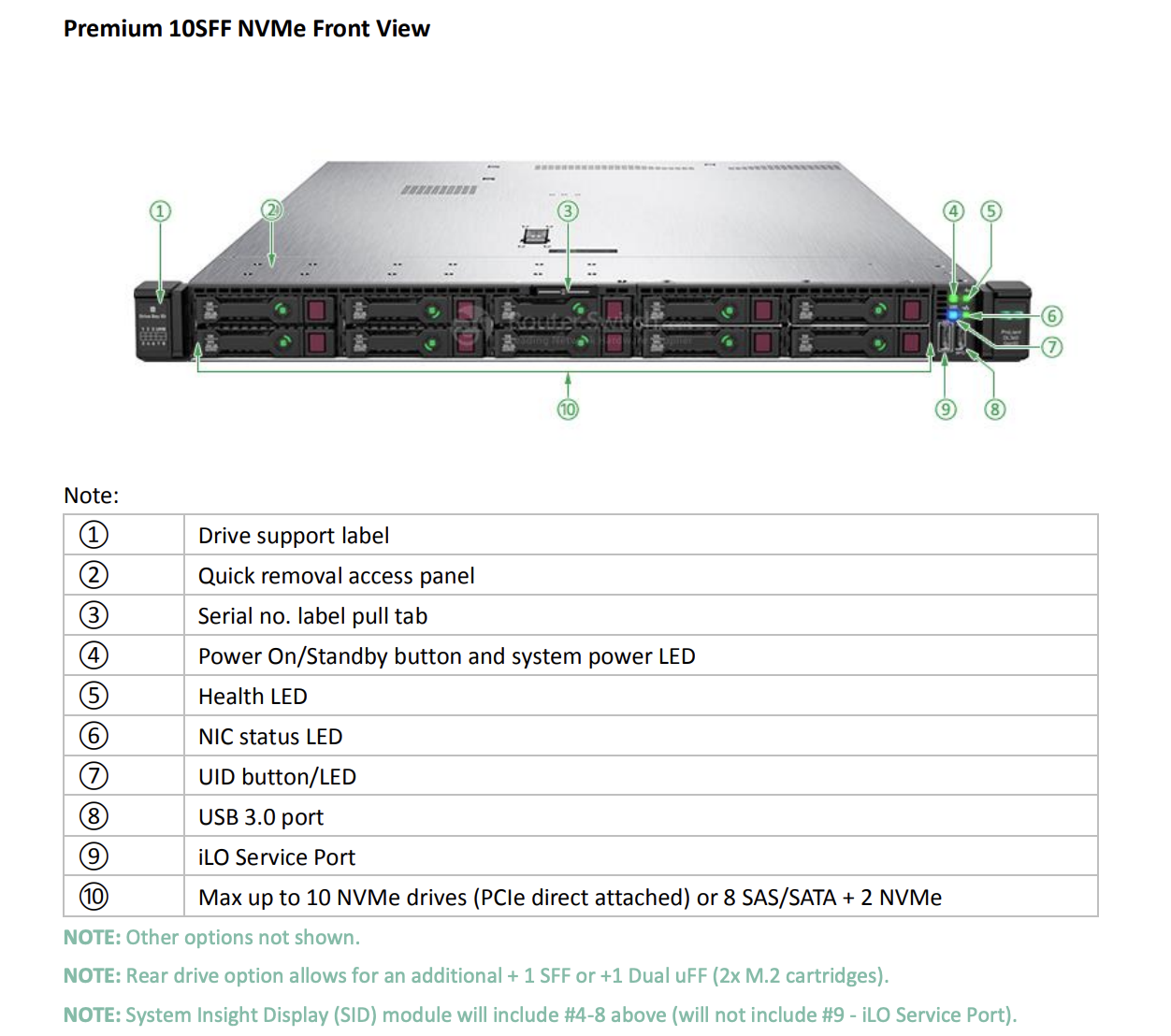

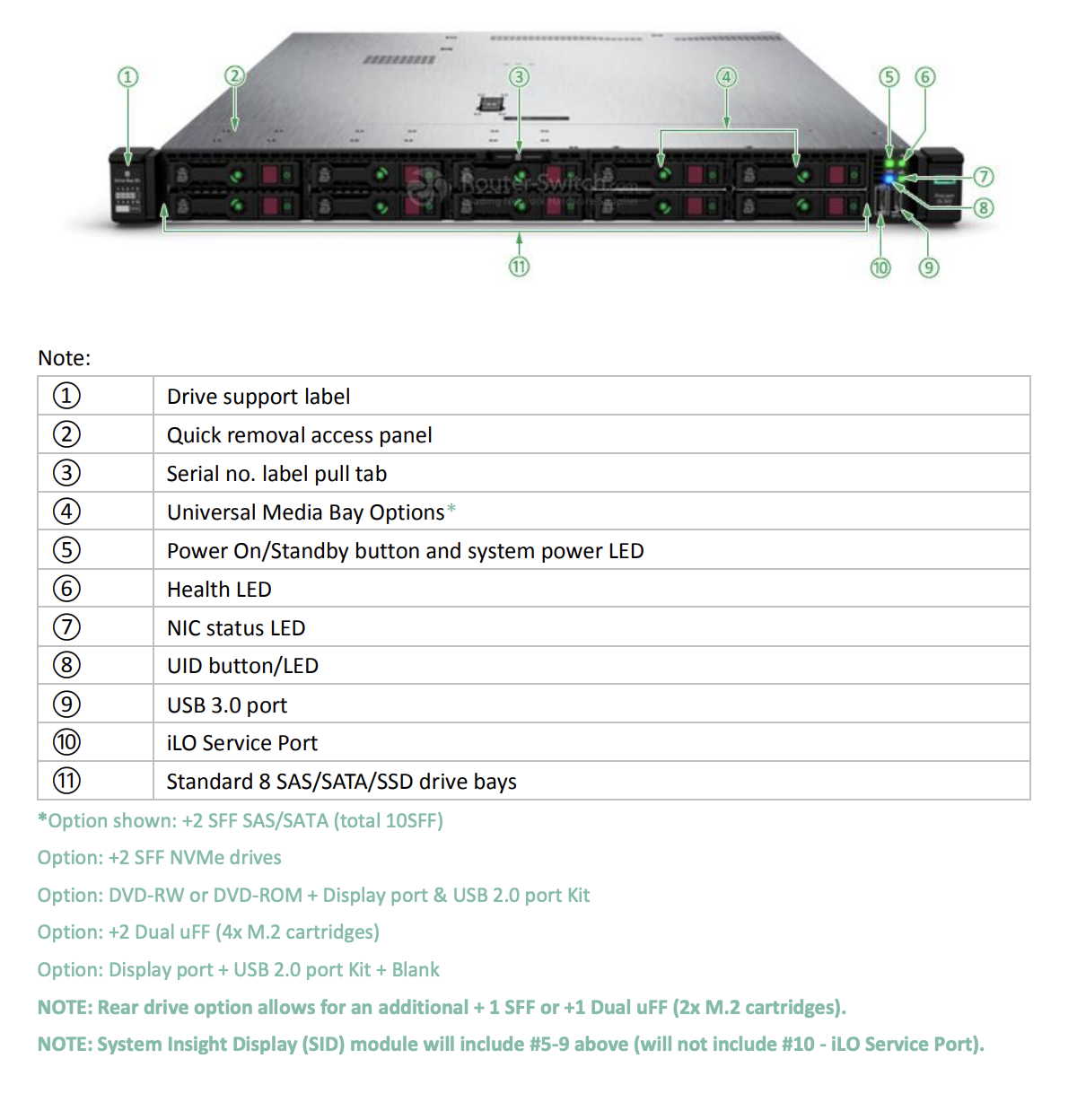

8 SFF Front View – 8 SFF + 2 SFF Universal Media Bay option shown

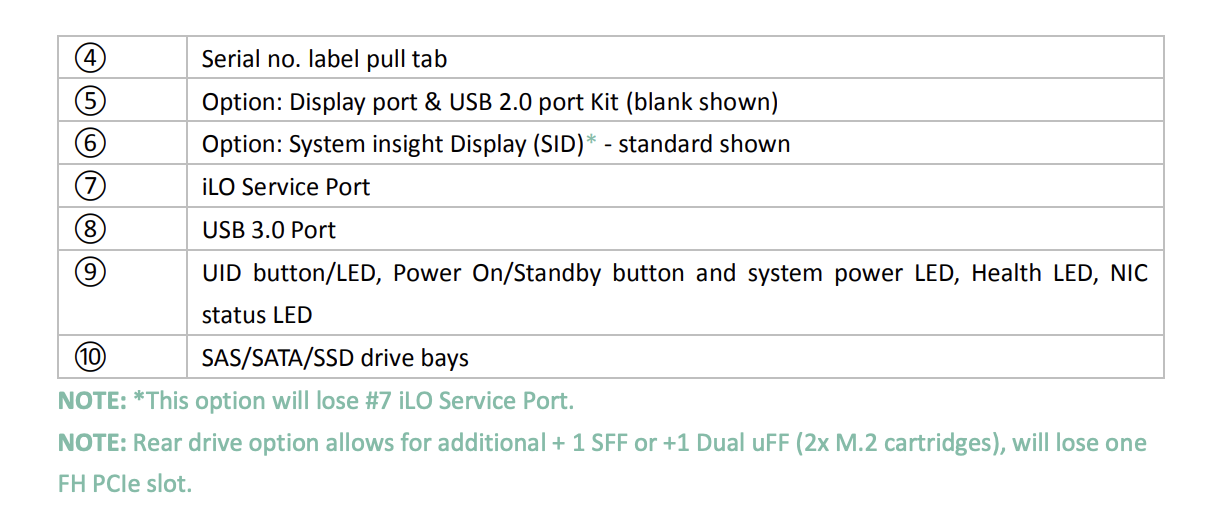

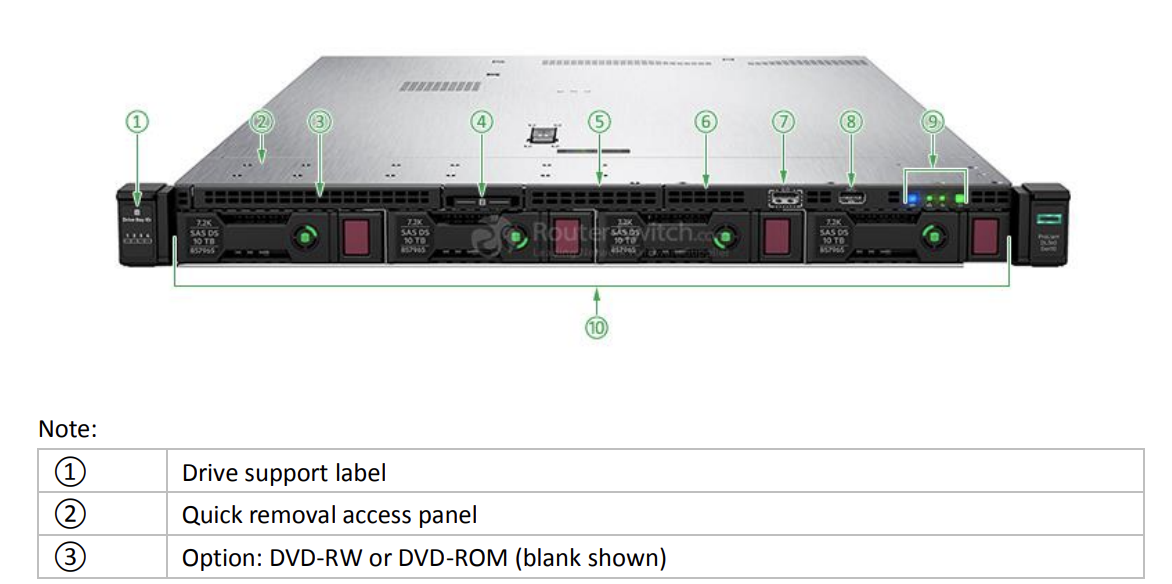

4 LFF Front View – Standard 4 LFF shown

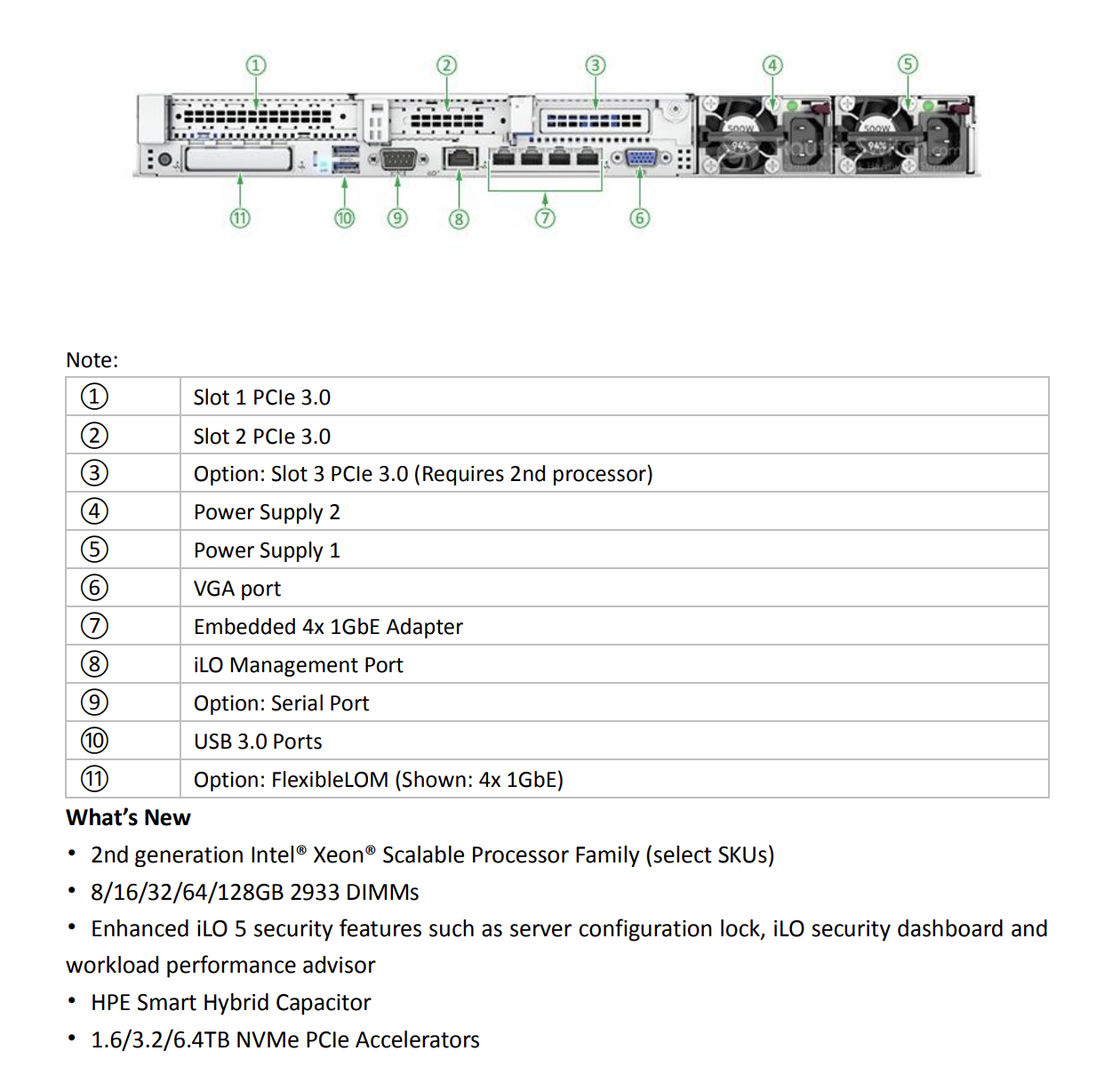

Rear View
• 480/960GB, 1.92/3.84TB SATA Mixed Use SFF SSDs
• 240/480/960GB, 1.92/3.84TB SATA Read Intensive SFF SSDs
• 960GB, 1.92/3.84TB Value SAS Mixed Use SFF SSD
• 960GB, 1.92TB Value SAS Mixed Use LFF SSD
• 960GB, 1.92/3.84/7.68TB Value SAS Read Intensive SFF SSDs

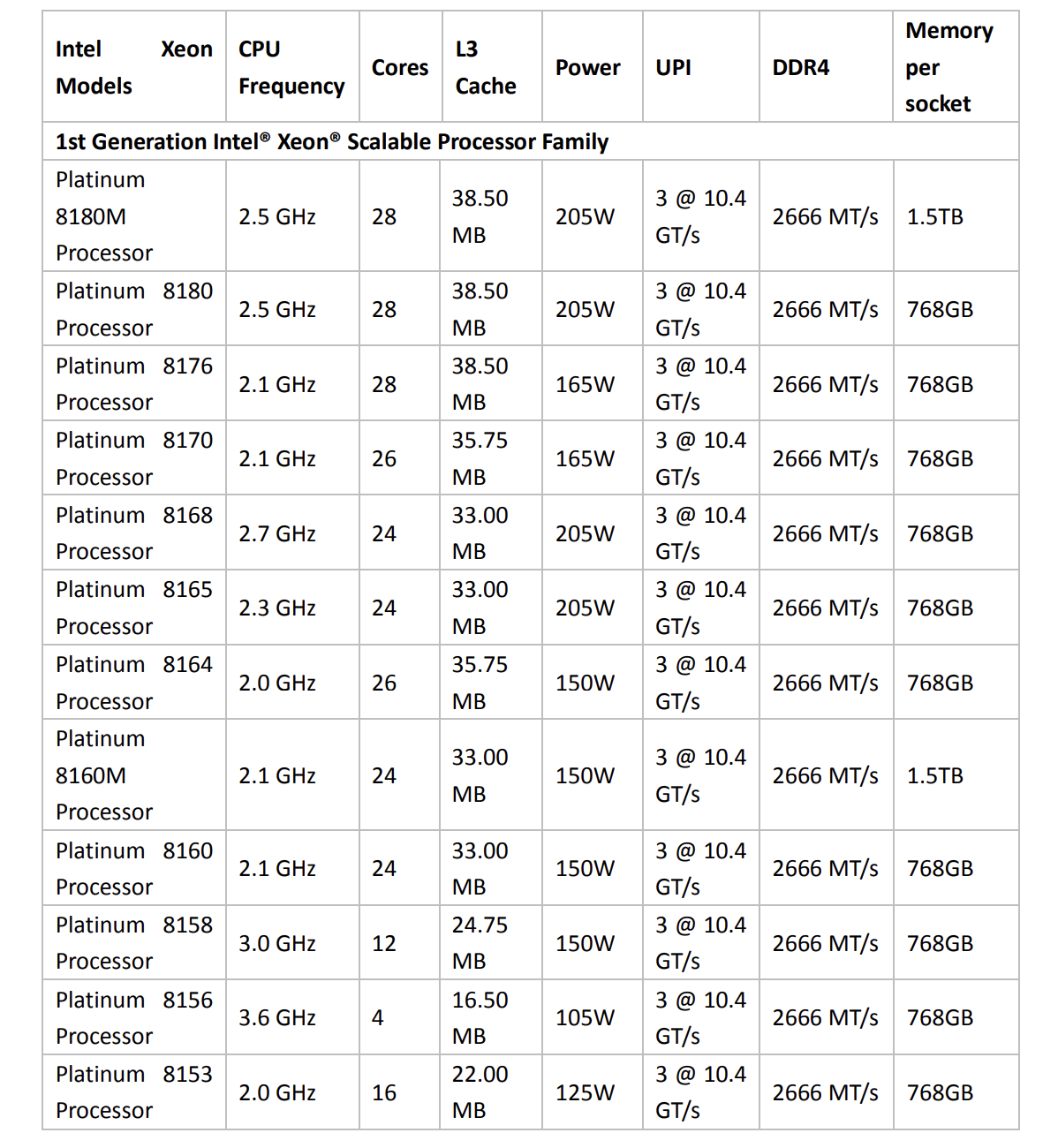

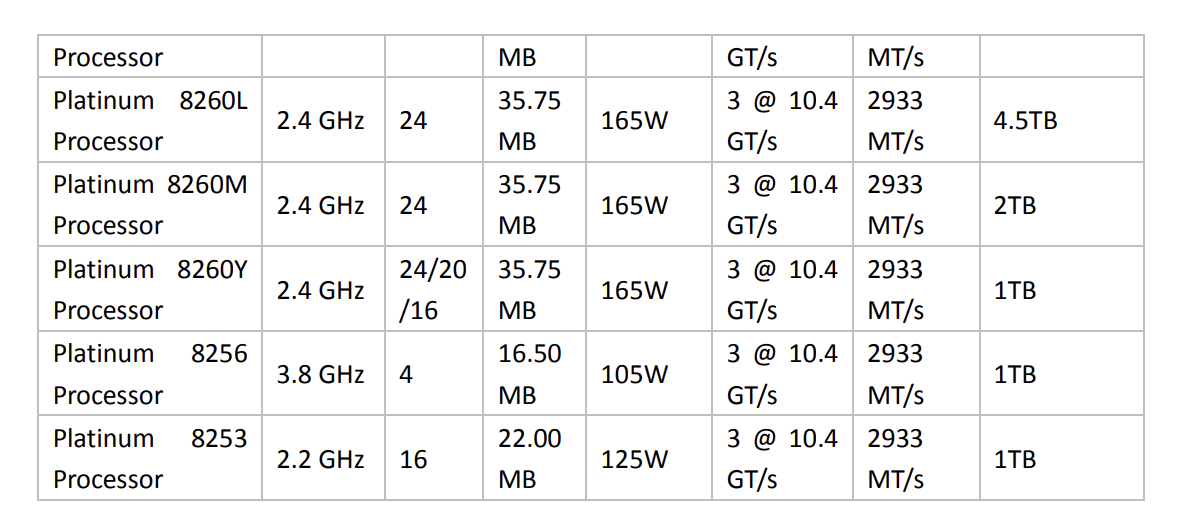

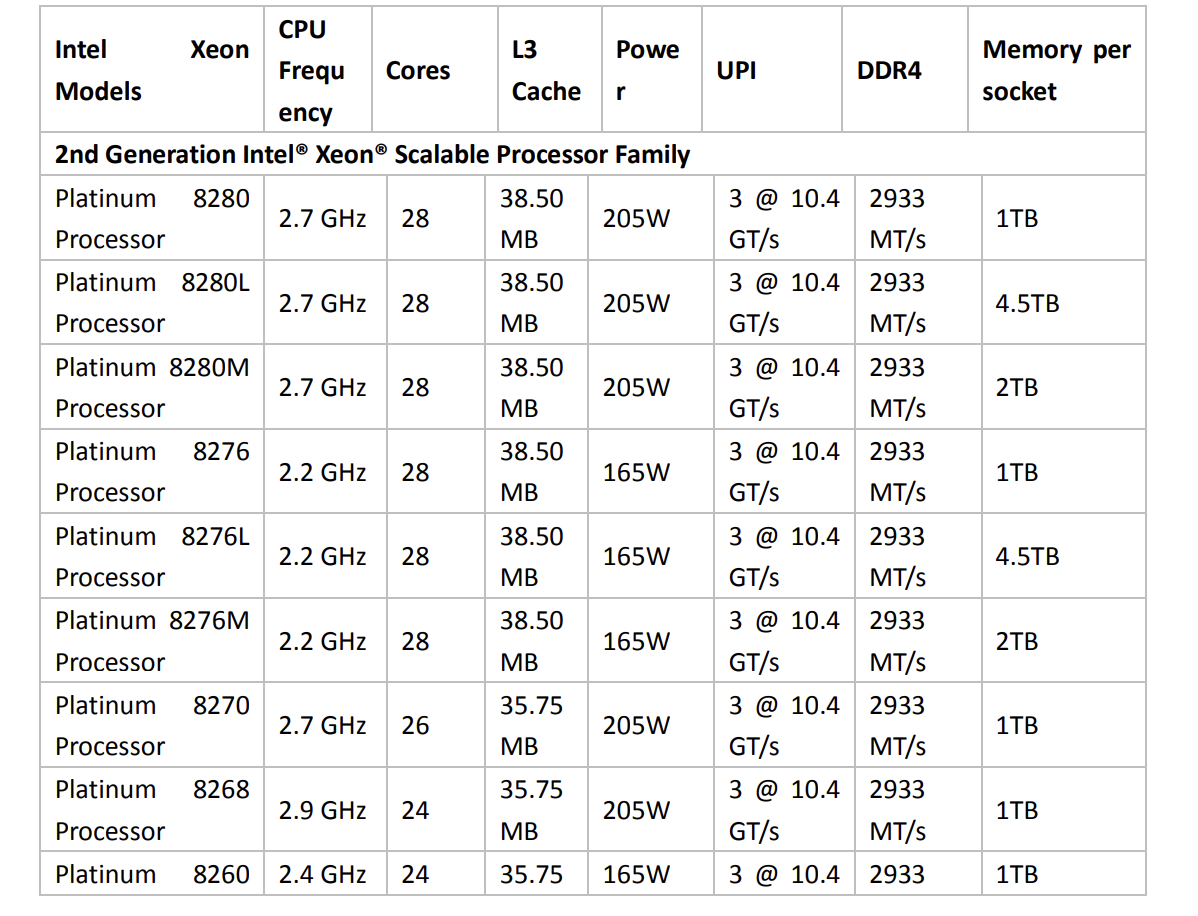

NOTE: Platinum Processors:2nd Generation:6-Channel DDR4 @ 2933 MT/s.6TB max RAM (larger than 2TB memory per socket on select SKUs)Support for: HPE DC Persistent Memory (select skus) 2H19, Vector Neural Network Instructions (VNNI) for inferenceacceleration.2 and 4 sockets capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, advanced RAS1st Generation:6-Channel 1DPC DDR4 @ 2666 MT/s.768 GB max memory capacity (1.5 TB on select skus)2 and 4 sockets capable, 2S - 2UPI, 4S - 3UPI, 8S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, advanced RAS.

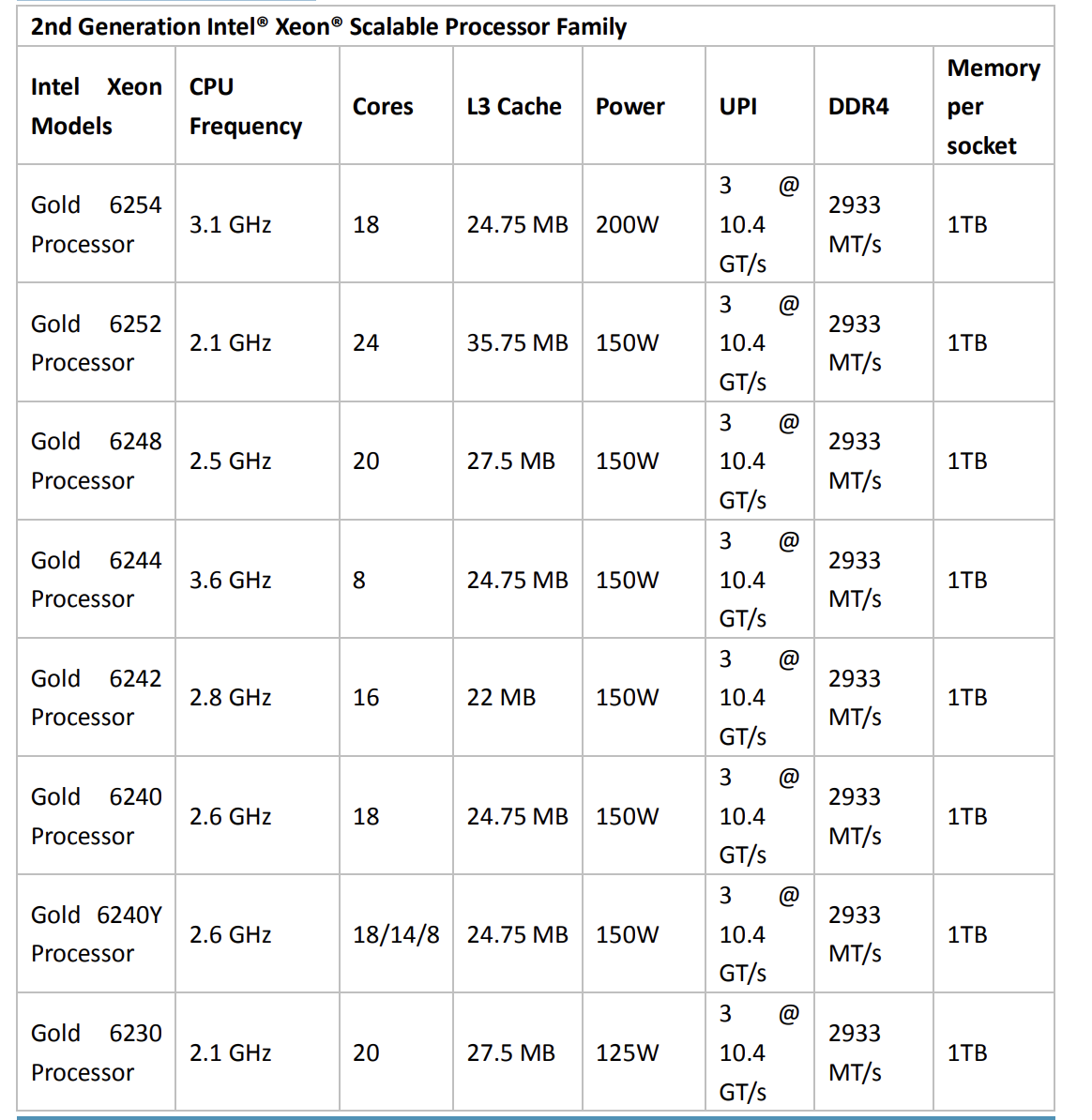

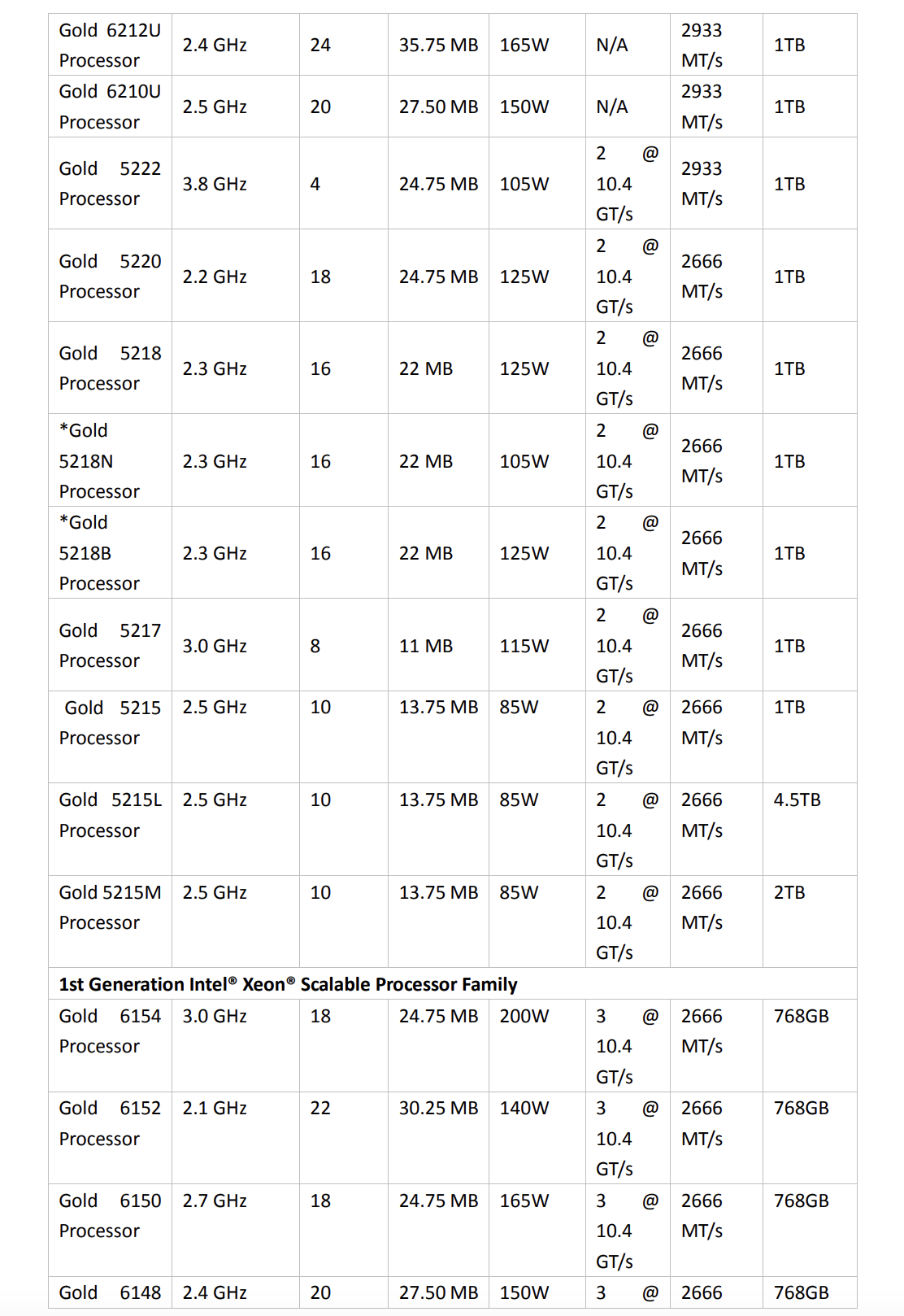

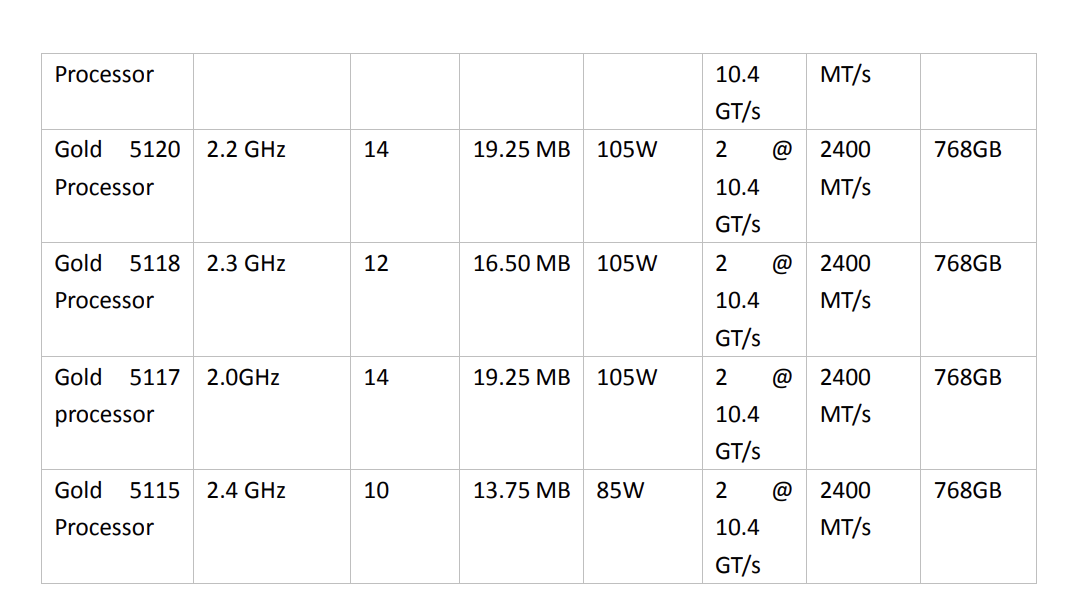

NOTE: Gold Processors:2nd Generation:NOTE: 5218N processor available at launch, Intel® Speed Select Technology-Base Frequency enablement via SystemROM upgrade targeting June 2019NOTE: 5218B has consistent features with the 5218 processor but from a different die. Mixing both 5218B & 5218in a system is not supported 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 skus only), 2666 MT/s on all Gold5200 skus (except 5222 @ 2933 MT/s).6TB max RAM (larger than 2TB memory per socket on select SKUs)Support for: HPE DC Persistent Memory (select skus) 2H19, Vector Neural Network Instructions (VNNI) forinference acceleration.2 and 4 sockets capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, advanced RAS1st Generation:6-Channel 1DPC DDR4 @ 2400 MT/s (SKU 5122 - supports 2666 MT/s).768 GB max memory capacity (1.5 TB on select skus).2 and 4 sockets capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (SKU 5122 -supports 2x 512 bit FMA).48 lanes PCIe 3.0, advanced RAS.

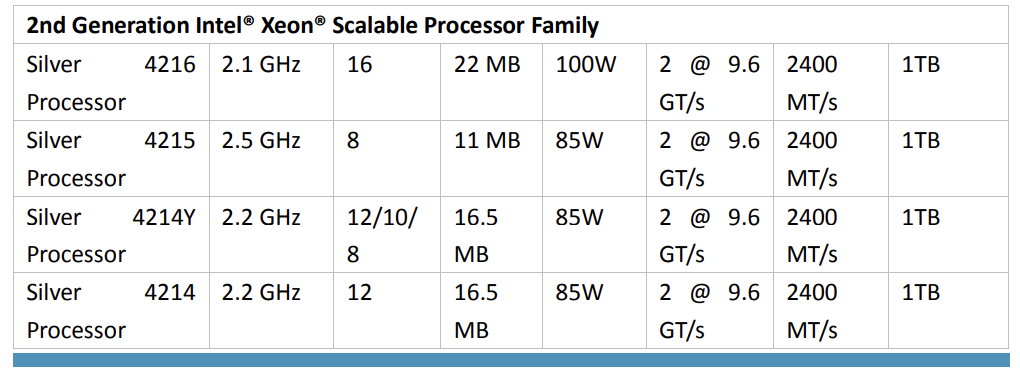

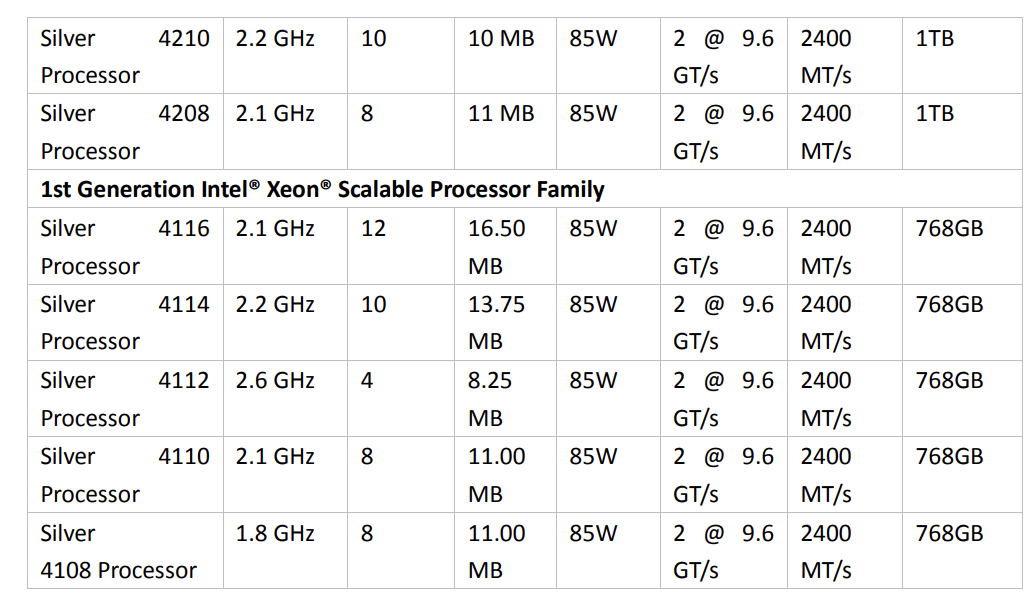

NOTE: Silver Processors:2nd Generation:6-Channel DDR4 @ 2400 MT/s.2TB max RAMSupport for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration.2 and 4 sockets capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 9.6 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, standard RAS1st Generation:6-Channel DDR4 @ 2400 MT/s, 768 GB max memory capacity.2 sockets capable, 2S - 2UPI @ 9.6 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA).48 lanes PCIe 3.0, standard RAS.
4 LFF Front View – Standard 4 LFF shown
Rear View
NOTE: Platinum Processors:2nd Generation:6-Channel DDR4 @ 2933 MT/s.6TB max RAM (larger than 2TB memory per socket on select SKUs)Support for: HPE DC Persistent Memory (select skus) 2H19, Vector Neural Network Instructions (VNNI) for inferenceacceleration.2 and 4 sockets capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, advanced RAS1st Generation:6-Channel 1DPC DDR4 @ 2666 MT/s.768 GB max memory capacity (1.5 TB on select skus)2 and 4 sockets capable, 2S - 2UPI, 4S - 3UPI, 8S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, advanced RAS.
NOTE: Gold Processors:2nd Generation:NOTE: 5218N processor available at launch, Intel® Speed Select Technology-Base Frequency enablement via SystemROM upgrade targeting June 2019NOTE: 5218B has consistent features with the 5218 processor but from a different die. Mixing both 5218B & 5218in a system is not supported 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 skus only), 2666 MT/s on all Gold5200 skus (except 5222 @ 2933 MT/s).6TB max RAM (larger than 2TB memory per socket on select SKUs)Support for: HPE DC Persistent Memory (select skus) 2H19, Vector Neural Network Instructions (VNNI) forinference acceleration.2 and 4 sockets capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, advanced RAS1st Generation:6-Channel 1DPC DDR4 @ 2400 MT/s (SKU 5122 - supports 2666 MT/s).768 GB max memory capacity (1.5 TB on select skus).2 and 4 sockets capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (SKU 5122 -supports 2x 512 bit FMA).48 lanes PCIe 3.0, advanced RAS.
NOTE: Silver Processors:2nd Generation:6-Channel DDR4 @ 2400 MT/s.2TB max RAMSupport for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration.2 and 4 sockets capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 9.6 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).48 lanes PCIe 3.0, standard RAS1st Generation:6-Channel DDR4 @ 2400 MT/s, 768 GB max memory capacity.2 sockets capable, 2S - 2UPI @ 9.6 GT/s.Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA).48 lanes PCIe 3.0, standard RAS.
