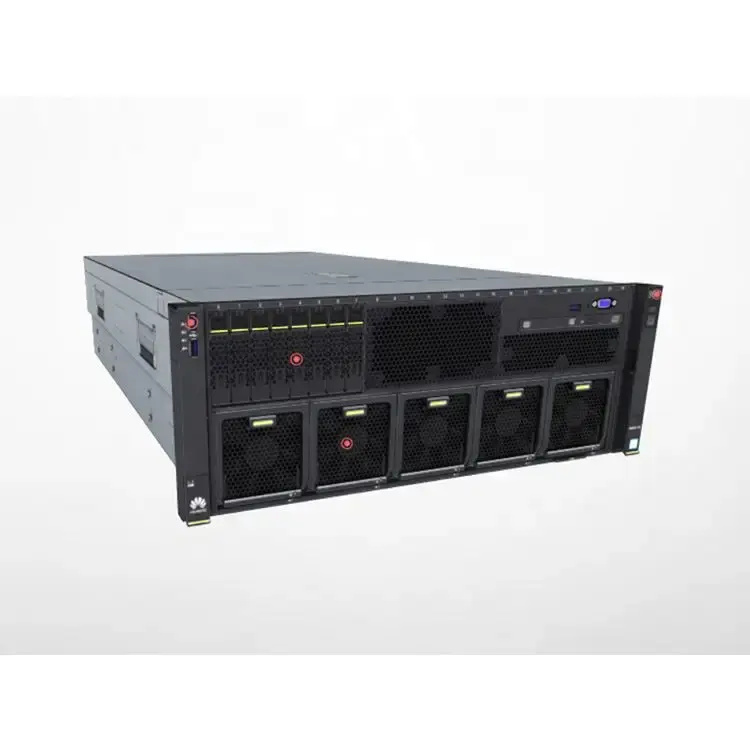

Huawei xFusion Server 5885H V6 4-Socket 4U Rack Server
Details
Huawei xFusion Server 5885H V6 4-Socket 4U Rack Server Overview:
FusionServer 5885H V6 is a 4U, 4-socket rack server designed for critical business applications with high reliability and performance requirements, as well as compute-intensive workloads such as virtualization, high-performance computing (HPC), and databases. It supports up to four Intel® Xeon® Scalable processors and 48 DDR4 DIMMs. FusionServer 5885H V6 incorporates patented technologies such as Dynamic Energy Management Technology (DEMT) and fault diagnosis management (FDM), and can be optionally equipped with FusionDirector, a full-lifecycle management software, to effectively reduce operating expense (OPEX) and enhance return on investment (ROI).
Technical Specifications
Parameter
Description
Model
FusionServer 5885H V6
Form Factor
4U rack server
Processors
2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W
Memory
48 x DDR4 DIMM slots, up to 3200 MT/s; up to 24 x Intel® Optane™ PMem modules (200 series), 2666 MT/s
Local Storage
Supports hot-swappable drives with the following configuration options:
• 8 x 2.5” front SAS/SATA drives
• 24 x 2.5” front SAS/SATA drives
• 25 x 2.5” front SAS/SATA drives
Flash storage:
• 2 x M.2 SSDs
RAID Support
RAID 0, 1, 10, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration
PCIe Expansion
Up to 19 x PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
GPU Cards
4 x FHFL dual-slot GPU heterogeneous accelerators or 8 x FHHL single-slot GPU accelerators
Fan Modules
5 x hot-swappable fan modules in N+1 redundancy mode
Power Supply
4 x hot-swappable PSUs in N+N redundancy mode and the following configuration options:
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W DC PSUs (input: –38.4 V to –72 V DC)
Management
• BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening
• BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management
• The FusionDirector management software can be optionally configured to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrades, enabling automatic entire-lifecycle management
OS
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi . For more, click here
