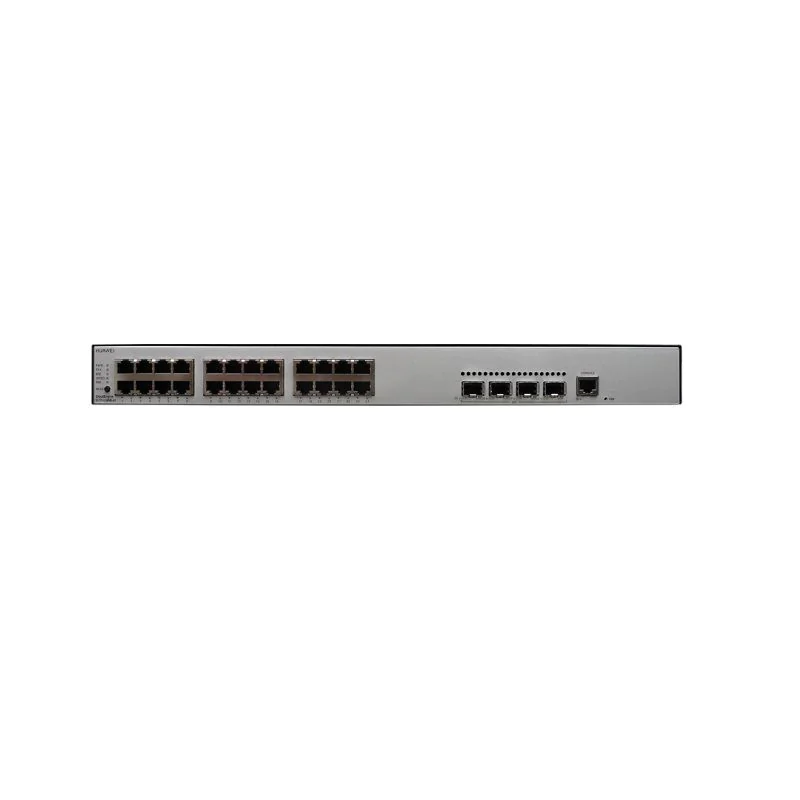

The S5735-L24P4S-A1 from the Huawei CloudEngine S5700 Series Switches adopts 24 10/100 / 1000Base-T Ethernet port, 4 Gigabit SFP, POE +, AC power supply.
Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12 C48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
Model | S5735-L24P4S-A1 |
Part Number | 98011321 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
Console port | RJ45 |
| PoE | Supported |
Dimensions(H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
Product Details
The S5700 series Ethernet switches (S5700 for short) are next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.
