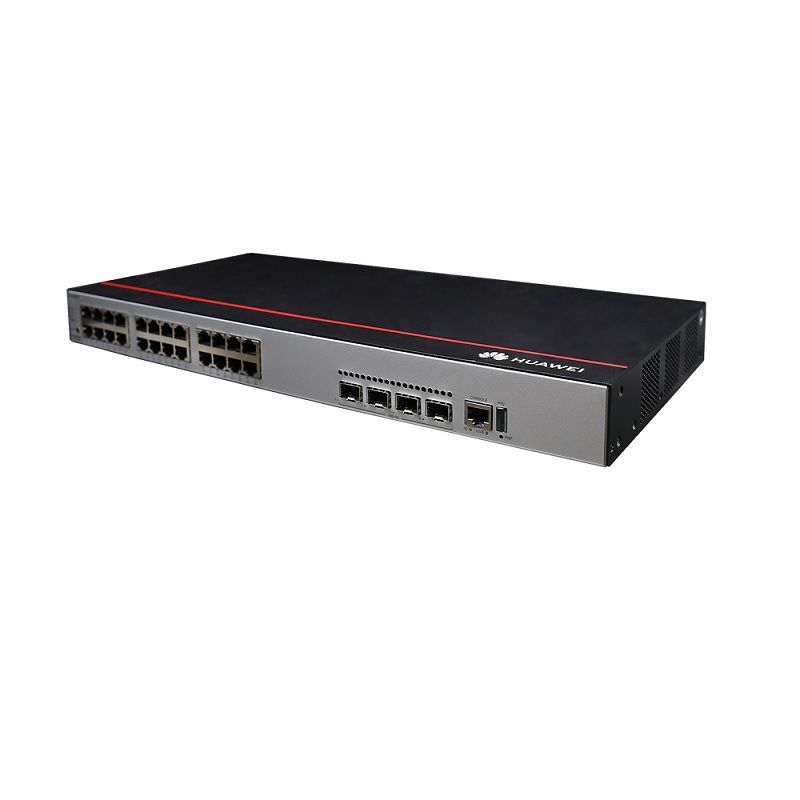

Huawei CloudEngine S5735-L24T4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)

Huawei CloudEngine S5735-L24T4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)

Details

S5735-L24T4X-A1 Overview


Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols providing higher performance and more powerful service processing capabilities for networks.

Quick Spec

Table 1 shows the quick spec.

Product Model

S5735-L24T4X-A1

Memory

512 MB

Flash memory

512 MB

Typical power consumption [W]

33.2 W

Typical heat dissipation [BTU/hour]

113.28 BTU/hour

Supported Transceivers

Table 2 shows the recommended models.

Model

Description

OMXD30000

Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

OMXD30009

Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10

ESFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)

Compare to Similar Items

Table 3 shows the comparison.

Product Model

S5735S-L12T4S-A

S5735S-L12P4S-A

S5735S-L24T4S-A

S5735S-L24P4S-A

S5735S-L24T4X-A

S5735S-L24P4X-A

S5735S-L48T4S-A

S5735S-L48T4X-A

S5735S-L48P4X-A

S5735S-L32ST4X-A

Forwarding Performance

24 Mpps

42 Mpps

96 Mpps

78 Mpps

132 Mpps

108 Mpps

Switching Capacity

32 Gbit/s/336 Gbit/s

56 Gbit/s/336 Gbit/s

128 Gbit/s/336 Gbit/s

104 Gbit/s/432 Gbit/s

176 Gbit/s/432 Gbit/s

144 Gbit/s/432 Gbit/s

Fixed Ports

12 x 10/100/1000Base-T ports, 4 x GE SFP ports

24 x 10/100/1000Base-T ports, 4 x GE SFP ports

24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports

48 x 10/100/1000BASE-T ports, 4 x GE SFP ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

PoE+

CloudEngine S5735S-L12P4S-A: Supported
CloudEngine S5735S-L24P4S-A: Supported
CloudEngine S5735S-L24P4X-A: Supported
CloudEngine S5735S-L48P4X-A: Supported
Other: Not supported
