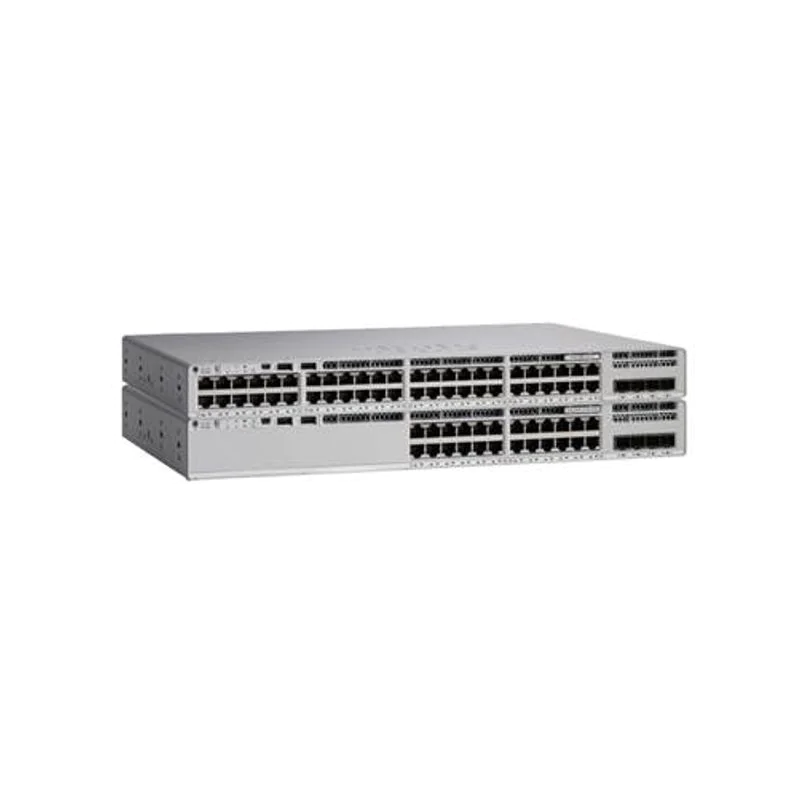

C9200L-48T-4X-A Cisco Catalyst 9200 48-port data only, 4 x 10G ,Network Advantage.

Details

C9200L-48T-4X-A Overview


Cisco’s C9200L-48T-4X-A is designed as an enterprise switch providing robust and reliable infrastructure for modern business environments. As a purpose-built enterprise switch, it delivers layer 3 capabilities that are essential for optimizing routing and network segmentation in dynamic organizations. The switch ensures simplified operations through intuitive management and automation features, making deployment and ongoing configuration efficient for both IT administrators and integration partners. Those seeking network resilience will appreciate the switch’s redundant fixed fans and industry-leading mean time between failures (MTBF), supporting continuous uptime necessary for mission-critical operations across businesses in Asia, Europe, Africa, and North America. Equipped with 48 high-speed data ports and 4x 10G fixed uplinks, it meets the demanding connectivity needs of mid-sized networks, branch offices, and distributed enterprises. The C9200L-48T-4X-A empowers resellers, small systems integrators, and end-users to deploy scalable infrastructures that accommodate organizational growth without complexity. For distributors and value-added resellers, the switch’s advanced layer 3 routing and stacking bandwidth simplify integration into diverse client environments, driving operational excellence at a competitive total cost of ownership. Integrated Network Advantage software delivers enhanced policy, security, and automation, while a hardware-based 80 Gbps stacking interface allows future expansion and seamless management of aggregated switching resources. This unified feature set makes the C9200L-48T-4X-A a preferred choice for businesses planning to evolve their networks for future digital initiatives while prioritizing stable, high-performance, and easy-to-manage solutions.

Product Features Comparison

BrandCiscoCiscoCiscoCisco
Port Configuration48 ports data48 ports data48 ports data24 ports data
Switching Capacity176 Gbps176 Gbps176 Gbps128 Gbps
Forwarding Rate261.9 Mpps261.9 Mpps190.4 Mpps190.4 Mpps
PoE Budgetn/an/an/an/a
Stacking Capability80 Gbps80 Gbps320 Gbps80 Gbps

Optional Add-ons

Model NumberDescription
PWR-C5-125WACCisco AC Power Supply, accessory for 9200L Series, provides reliable power delivery.
C9200L-STACK-KITStacking Kit for Cisco 9200L, enables switch stacking for improved scalability.
SFP-10G-SRCisco 10GBASE-SR SFP+ Module, supports high-speed uplink connectivity.

C9200L-48T-4X-A Specification

Model
C9200L-48T-4X-A
Brand
Cisco
Downlinks total 10/100/1000 or PoE+ copper ports
48 ports data
Uplink configuration
4x 10G fixed uplinks
Default primary AC power supply
PWR-C5-125WAC
Fans
Fixed redundant
Software
Network Advantage
Chassis Dimensions
1.73 x 17.5 x 11.3 in / 4.4 x 44.5 x 28.8 cm
Virtual Networks
1
Stacking bandwidth
80 Gbps
Total number of MAC addresses
16,000
Total number of IPv4 routes (ARP plus learned routes)
11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries
3,000
IPv6 routing entries
1,500
Multicast routing scale
1,000
QoS scale entries
1,000
ACL scale entries
1,500
Packet buffer per SKU
6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries
16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM
2 GB
Flash
4 GB
VLAN IDs
1024
Total Switched Virtual Interfaces (SVIs)
512
Jumbo frames
9198 bytes
Switching capacity
176 Gbps
Forwarding rate
261.9 Mpps
Mean time between failures (hours)
503,400
