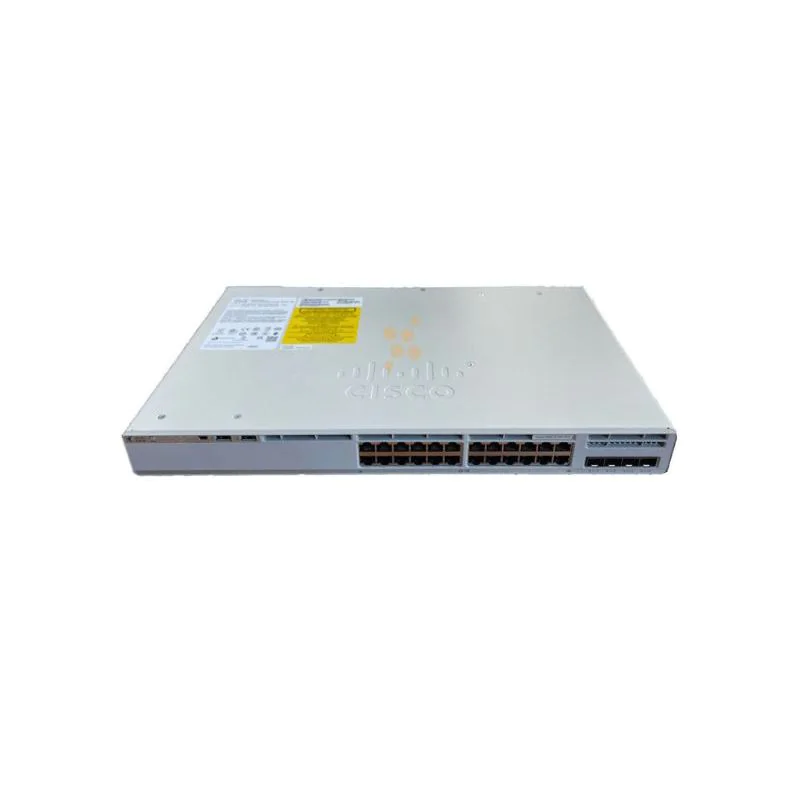

C9200L-24P-4X-A Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage

Details

C9200L-24P-4X-A Overview


Cisco’s C9200L-24P-4X-A is a robust enterprise-class switch built to deliver resilient networking for modern business environments. Part of the Catalyst 9200 series, this model advances the legacy of reliable Cisco solutions, delivering scalable and efficient Layer 2/3 switching for distributed campuses and secure branch deployments. At its core, the 9200 series stands out for its comprehensive feature set, highlighted by the c9200l-24p-4x-a’s support for advanced PoE+ on all 24 access ports, fast 4x 1G SFP uplinks, and energy-efficient operation. The cisco platform ensures sophisticated security, powerful routing protocols like OSPF, EIGRP, RIP, and BGP, and rock-solid compliance to global standards. End users, SMB system integrators, and distribution partners benefit alike: seamless device power delivery (370W total PoE budget), simplified management via Cisco IOS-XE and SNMPv3/RESTCONF, and compact design with silent operation in diverse climates. For those investing in the future, the 9200 architecture emphasizes not only high availability—thanks to advanced security features including TrustSec and MACsec—but also long-term operational confidence with an impressive MTBF of 390,310 hours. The c9200l-24p-4x-a represents an agile networking solution specifically engineered to meet the evolving needs of mid-sized and distributed enterprise networks, across global regions. It empowers a secure, efficient foundation for organizational growth and digital transformation, with trusted cisco dependability at the forefront.

Product Features Comparison

Port Configuration24 × 10/100/1000BASE-T (RJ45) with PoE+, 4 × 1G SFP uplinks24-port 1G copper with fixed 4x10G/1G SFP+ uplinks24 × 10/100/1000BASE-T PoE+ (RJ45, IEEE 802.3af/at), 4 × SFP+ Uplinks (10GBASE-X)24 × 10/100/1000BASE-T (RJ45, non-PoE), 4 × SFP (1000BASE-X)
Switching Capacity96 Gbpsn/a128 Gbps (10G: 64 Gbps / 1G: 56 Gbps)56 Gbps (1G) / 128 Gbps (10G)
Forwarding Rate72 Mppsn/a95.23 Mpps (64-byte L3 packets)41.67 Mpps (64-byte L3 packets)
PoE Budget370W total PoE power, supports 802.3af/at PoE+n/a195W (total)n/a
Stacking Capabilityn/an/an/an/a

Optional Add-ons

Model NumberDescription
PWR-C5-600WAC600W AC Power Supply for Cisco Catalyst 9200L Series, reliable backup and replacement supply
GLC-LH-SMDCisco SFP 1000BASE-LX/LH module for 1G long-range fiber uplink applications
C9200L-STACK-KITStacking kit for Catalyst 9200L switches, enabling enhanced high availability and scalability

C9200L-24P-4X-A Specification

Model
C9200L-24P-4X-A
Brand
Cisco
Series
Catalyst 9200L Series
Product Type
Fixed Configuration Switch
License Level
Advantage (A)
Chassis Dimensions (Base Unit)
1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm)
Chassis Dimensions (With FEP/Fan)
1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
Fixed Ports
24 × 10/100/1000BASE-T (RJ45) with PoE+, 4 × 1G SFP uplinks
Switching Capacity
96 Gbps
Forwarding Rate
72 Mpps
Buffer Memory
16 MB shared
MAC Address Table
32,000 entries
VLAN Support
4,096 active VLANs, 1,500 STP instances
Power Supply
600W AC (PWR-C5-600WAC or PWR-C6-600WAC)
Input Voltage
100–240V AC, 50/60Hz
MTBF
390,310 hours (~44.6 years)
PoE Budget
370W total PoE power, supports 802.3af/at PoE+
Licensing
Advantage (pre-installed)
Minimum IOS-XE Version
16.12.1
Layer 3 Routing
Static routing, RIP, EIGRP, OSPF, BGP
Security Features
802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow
Operating Temperature
32°F to 104°F (0°C to 40°C); short-term: -5°C to 50°C (up to 96 hrs/year)
Humidity
5% to 90% non-condensing
Altitude
Up to 10,000 ft (3,000 m)
Noise Level (25°C ambient)
LpA: 42 dB typical, 45 dB max; LwA: 5.3 B typical, 5.6 B max
Management Interfaces
1 × RJ45 console (10/100), 1 × RJ45 management (10/100)
Management Protocols
SNMPv3, NETCONF/YANG, RESTCONF, gRPC
Compliance
Safety: UL 60950-1, EN 62368-1; EMC: FCC Part 15 Class A, EN 55032; RoHS compliant
Power Consumption (115V AC, Idle/50%/100% Traffic)
45.45 W / 44.72 W / 53.49 W
Power Consumption (230V AC, Idle/50%/100% Traffic)
