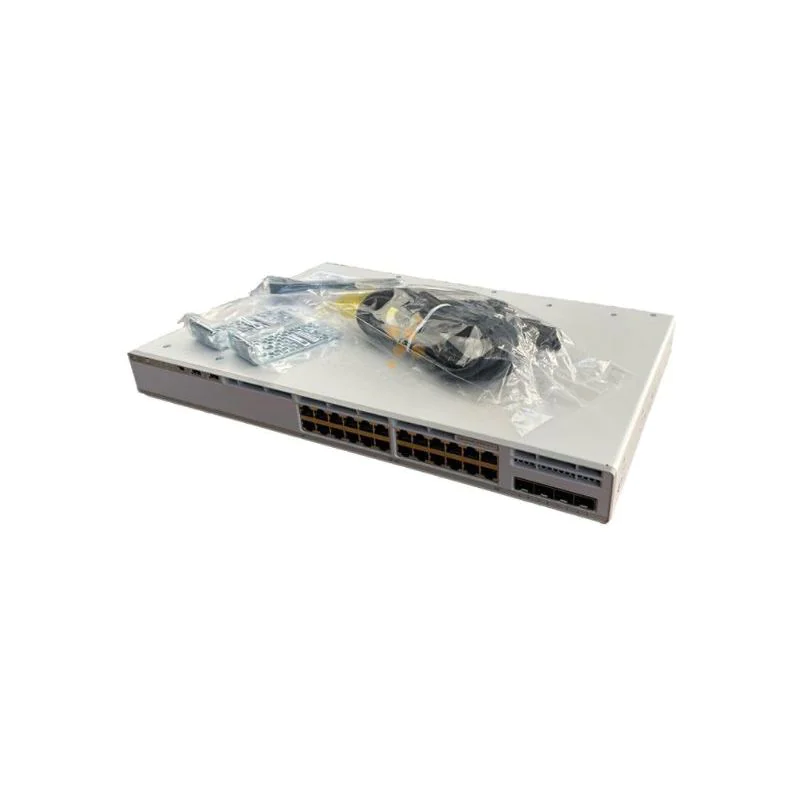

C9200L-24P-4G-A Cisco Catalyst 9200L 24-port PoE+, 4 x 1G, Network Advantage.

Details

C9200L-24P-4G-A Overview


The Cisco C9200L-24P-4G-A is a robust enterprise-grade switch engineered for advanced, secure, and scalable business networking across diverse environments. Belonging to the renowned Cisco 9200 family, this model leverages a fixed configuration platform to deliver optimal network performance for mid-sized businesses and branch offices. Thanks to the versatility of the 9200 architecture, users enjoy seamless network integration with trusted Cisco management features. The C9200L-24P-4G-A is especially suitable for organizations seeking reliable power delivery, offering PoE+ support and a 370W total PoE budget, efficiently powering a wide range of connected devices. Designed for flexibility and resilience, its 24 Gigabit RJ45 ports and 4 SFP uplinks maximize connectivity, while the switch maintains a high switching capacity of 96 Gbps to ensure rapid data handling for business-critical applications. Enhanced with advanced security protocols and network segmentation capabilities, the C9200L-24P-4G-A upholds stringent data protection standards required by enterprises. Integrators and IT resellers will appreciate its compatibility, manageability, and robust build quality synonymous with Cisco. Whether deploying in Asia, Europe, Africa, or North America, this Cisco switch balances efficiency, performance, and security, ensuring it stands as a cornerstone solution for reliable network expansion and optimized business operations. For distributed workforces or IoT-centric deployments, the c9200l-24p-4g-a delivers end-to-end connectivity with minimal latency, and with Cisco’s international support, enterprises remain assured of sustainability and scalability in evolving digital landscapes.

Product Features Comparison

BrandCiscoCiscoCiscoCisco
Port Configuration24 × 10/100/1000BASE-T (RJ45) with PoE+ support; 4 × 1G SFP uplinks48 × 10/100/1000BASE-T ports, 4 × 10 Gigabit Ethernet SFP+ uplinks48 × 10/100/1000BASE-T, 4 × SFP+ (10G) uplinks24 × 10/100/1000BASE-T PoE+ ports
Switching Capacity96 Gbps392 Gbps (48-port Multigigabit model with 4 × 10G uplinks)176 Gbps92 Gbps
Forwarding Rate72 Mpps130.95 Mpps104.16 Mpps68.4 Mpps
PoE Budget370W total PoE power, supports 802.3af/at PoE+n/an/an/a
Stacking Capabilityn/aStackWise-160 (up to 9 units)StackWise-160, up to 9 unitsStackWise-480 (up to 9 units)

Optional Add-ons

Model NumberDescription
PWR-C5-600WAC600W AC Power Supply, Cisco original accessory for C9200L switches
PWR-C6-600WAC600W Enhanced AC Power Supply, compatible with Cisco 9200 series
SFP-GLC-LX-SM-RGDRuggedized SFP Gigabit LX Module for extended fiber uplink support, Cisco

C9200L-24P-4G-A Specification

Model
C9200L-24P-4G-A
Brand
Cisco
Series
Catalyst 9200L Series
Product Type
Fixed Configuration Switch
License Level
Advanced (A)
Chassis Dimensions (H×W×D)
Base Unit: 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm); With FEP/Fan: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
Fixed Ports
24 × 10/100/1000BASE-T (RJ45) with PoE+ support; 4 × 1G SFP uplinks
PoE Budget
370W total PoE power, supports 802.3af/at PoE+
Power Supply
600W AC (PWR-C5-600WAC or PWR-C6-600WAC)
Input Voltage
100–240V AC, 50/60Hz
Switching Capacity
96 Gbps
Forwarding Rate
72 Mpps
Buffer Memory
16 MB shared
MAC Address Table
32,000 entries
VLAN Support
4,096 active VLANs, 1,500 STP instances
MTBF
392,210 hours (~44.8 years)
Software Licensing
Advanced (pre-installed)
Minimum IOS-XE
16.12.1
Layer 3 Routing
OSPF, EIGRP, BGP, IS-IS, PIM, VRF-lite
Security Features
802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow
Environmental - Operating Temperature
Standard: 32°F to 104°F (0°C to 40°C), Short-term: -5°C to 50°C (up to 96 hours/year)
Environmental - Humidity
5% to 90% non-condensing
Environmental - Altitude
Up to 10,000 ft (3,000 m)
Acoustics
Noise Level (25°C): LpA 42 dB typical, 45 dB max; LwA 5.3 B typical, 5.6 B max
Management Interfaces
1 × RJ45 console (10/100), 1 × RJ45 management (10/100)
Supported Protocols
SNMPv3, NETCONF/YANG, RESTCONF, gRPC
Compliance - Safety
UL 60950-1, EN 62368-1
Compliance - EMC
FCC Part 15 Class A, EN 55032
Compliance - RoHS
Compliant
Power Consumption (with PoE)
115V AC: Idle 38.95W, 50% 44.08W, 100% 49.00W; 230V AC: Idle 38.57W, 50% 43.69W, 100% 48.62W
