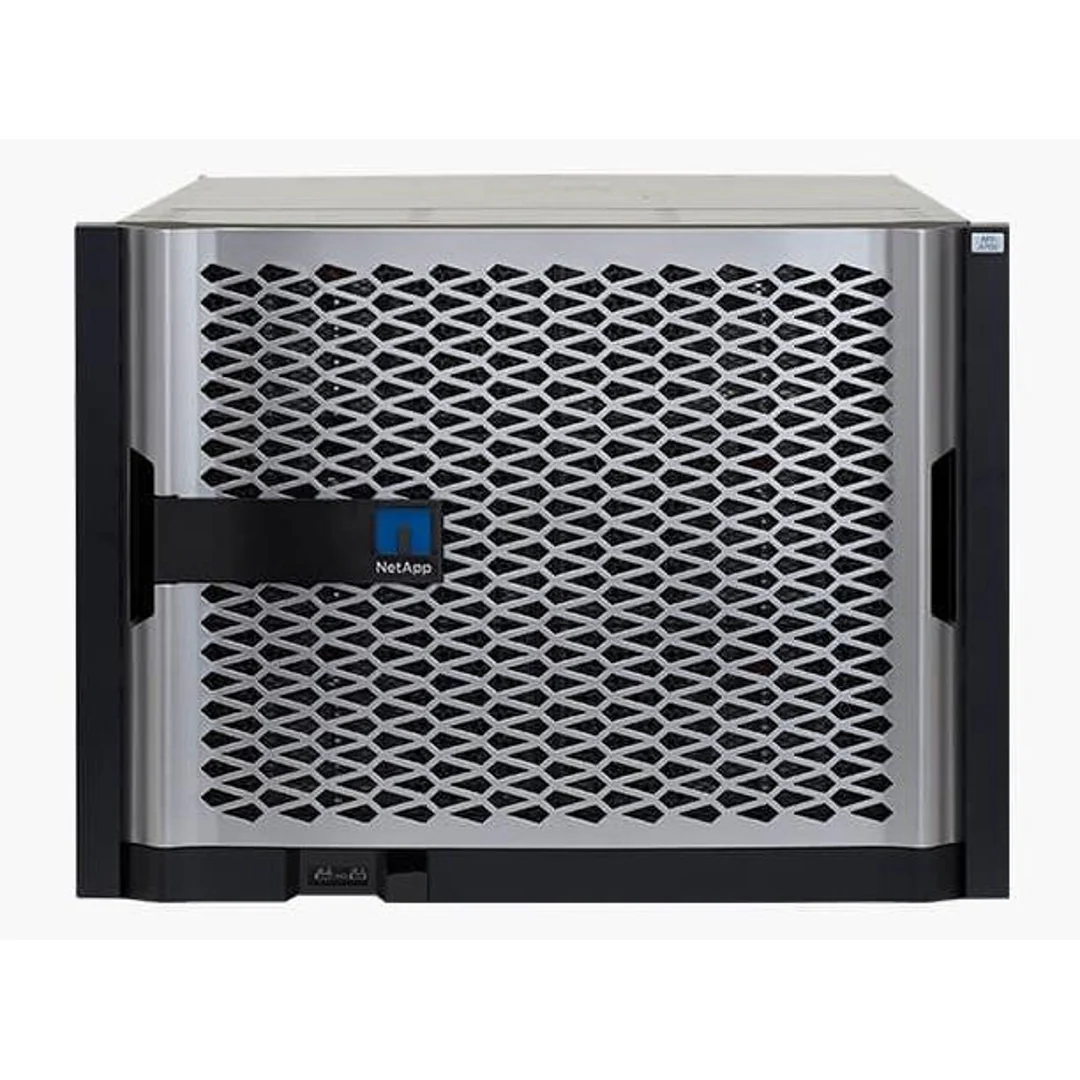

The NetApp AFF-A700 is a high-performance all-flash storage system built for large-scale enterprise workloads requiring speed, scalability, and efficiency. With an 8U chassis and dual controllers in an HA configuration, it features 1024GB of memory and four 64-bit, 18-core processors running at 2.30 GHz. Supporting up to 480 drives and a maximum capacity of 14.68PB, it is ideal for high-speed data processing, cloud infrastructure, and AI-driven applications.
Designed for flexibility, the system includes 24 IO module expansion slots, allowing for customized network and storage configurations. It supports DS224C, NS224, and NS224 w/ NSM100B disk shelves for seamless capacity expansion. Without built-in Ethernet, Fibre Channel, or UTA2 ports, connectivity depends on installed IO modules, providing tailored solutions for enterprise needs.
Measuring 14.02 inches in height, 19.02 inches in width with flanges, and 36.81 inches in depth with cable management, the AFF-A700 weighs up to 214.5 lbs. Supporting RAID 4, RAID 6 (RAID-DP), and RAID-TEC, it ensures enterprise-grade data protection. With remote management capabilities, NVMe SSD support, and modular expansion, it delivers the performance and reliability needed for demanding storage environments.
System ConfigModel: NetApp AFF-A700
Chassis: Single Chassis
Total Rack Height: 8U
Controllers: Dual Controller (HA)
Processor Model: 4x 64-bit 18-core 2.30 Ghz
Memory: 1024GB
Internal Drives: N/A
Module Expansion Slots: 24 x IO Modules
Max Drives (total): 480
Max Capacity: 14,688TB (14.68PB)
Disk Shelves: DS224C, NS224, NS224 w/ NSM100B
Filer Heads: N/A
Dimensions & WeightChassis Rack Height: 8U
Chassis Heights: 14.02" (35.6 cm)
Chassis Width w/ Mounting Flanges: 19.02" (48.3 cm)
Chassis Width w/o Mounting Flanges: 17.72" (45 cm)
Chassis Depth w/ Cable Mgmt: 36.81" (93.5 cm)
Chassis Depth w/o Cable Mgmt: 30.79" (78.2 cm)
Chassis Weight: up to 214.5 lb (97.3 kg)
Controller SpecsMax Controllers: 2 (Per Chassis)
Expansion Module Slot (per): 12 x IO Modules
Ethernet Ports (per): N/A
Fibre Channel Ports (per): N/A
UTA2 Ports (per): N/A
SAS Ports (per): N/A
Remote Management: Yes
Processor Model (per): 2x 64-bit 18-core 2.30 Ghz
Memory (Single/HA): 512GB/1024GB
NVRAM (Single/HA): 32GB/64GB
StorageMax Number of Internal Drives: 0
Max Number Drives (total): 480
Max Capacity: 14,688TB (14.68PB)
Max # of NVMe SSD Drives: 240
Max # of SSD Drives: 480
Drive Interface: SSD, NVMe SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS224C Shelves: 20 external
Max # of NS224 Shelves: 10 external
Max # of NS224 w/ NSM100B Shelves: 10 external
